QT - 26 Full Automatic Steel Vertical Red Brick Strip Cutting Machine In Brick Making Plant
Product Description

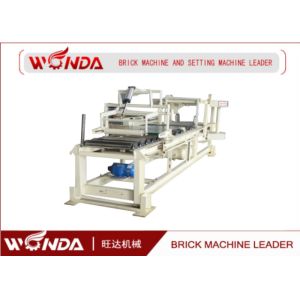

The cutting machine is mainly used for cutting the material which are extruded from vacuum extruder in certain length .The entire working process is under automatic control of PLC.
Its cutting wires are pneumatically tensioned, and the space between wires can be adjusted according to the requirements of making different products. In order to keep wire sharp, sections flat and service life of wires have been improved.
Before cutting, a sensor equipped on the driven shaft of conveyer can detect the speed of material from the extruder to the control center accurately, and the cutting frame is driven to move simultaneously with the extruded material, which ensures the cutting sections to be perpendicular to the bottom surface, and reduce the waste.
How the machine working?
| Working process |
| 1 | Firstly,by mixer to stir the raw material(cement or concrete or fly ash mixture),after getting perfect proportion material,by belt conveyor to deliver the raw material into feed bin. |
| 2 | Secondly,automatically open the door to feed the material,after getting enough ratio material,shut the door of stock bin. |
| 3 | Thirdly,From the send pallets machine to deliver the pallets,hydraulic press the material and moulding,by press head and mould function,get the bricks shape customer want. |
| 4 | Fourthly,if need color blocks,by 360 degree no dead angle color feeder,to balance the pigment,then by send the brick machine to outlet. |
Technical Parameter
| Condition | New |
| Type | Hollow Block Making Machine |
| Brick Raw Material | Clay |
| Processing | Brick Production Line |
| Method | Other |
| Automatic | Yes |
| Place of Origin | Henan, China (Mainland) |
| Brand Name | zhengtai |
| Voltage | 220/240/380/440V |
| Power | 1.5kw |
| Certification | CE/SGS/ISO9001 |
| Warranty | One Year |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Product Name | auto strip cutting and brick cutting machine |
| Products | brick making machine |
| Raw material | clay,fly ash,shale,coal gangue |
| Color | red |
| Block Type | solid or hollow brick |
| factory | gongyi,zhengzhou |
| patent | we have patent certificate |
| installation | we have workers to instal |
| maintenance | 1 year |
| training | we have professionals to train you |
Our service
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1) Quality control must be inspected strictly
(2) In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear
2.mishandling or improper operation
3. Incoming power supply fluctuation
4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
product site
Delivery site
Factory Site
